| Model | Product | Shipping | Activation Modes | Datasheet | Drawings | Step Drawings | Product Images | |||||||
| Weight of Agent | Unit Weight | Dimensions | Ship Wgt (kg) | Dimensions | Standard | with Bracket | Standard | with BTA | ||||||

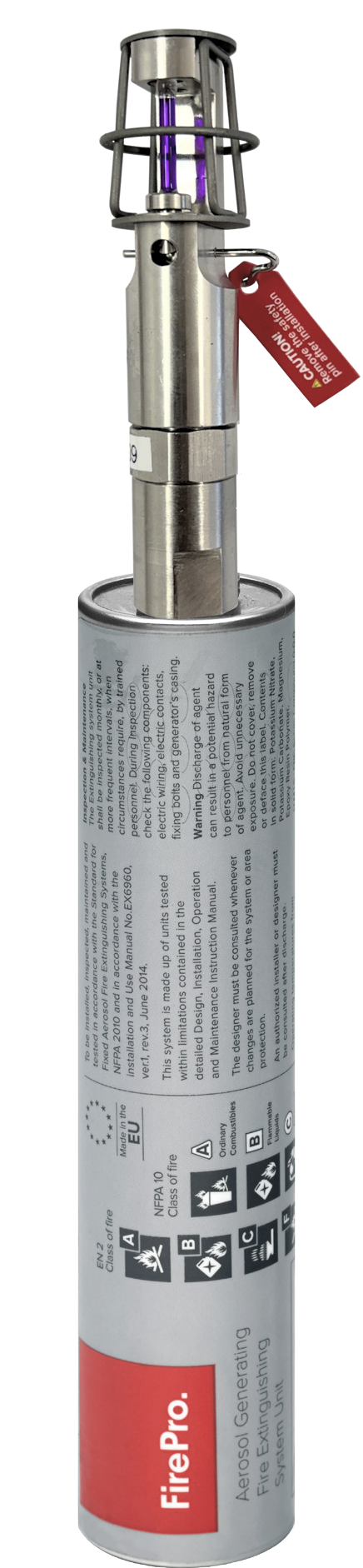

| FP-0020S | 20 | 310 | 165 x 30mm diam. | 1.0 | 310 x 220 x 110mm | Bulb Thermal Activator(BTA) |  |
 |
 |
 |
 |
|||
| FP-0020SE | 20 | 310 | 165 x 30mm diam. | 1.0 | 310 x 220 x 110mm | Electrical | |
|
|
|
||||

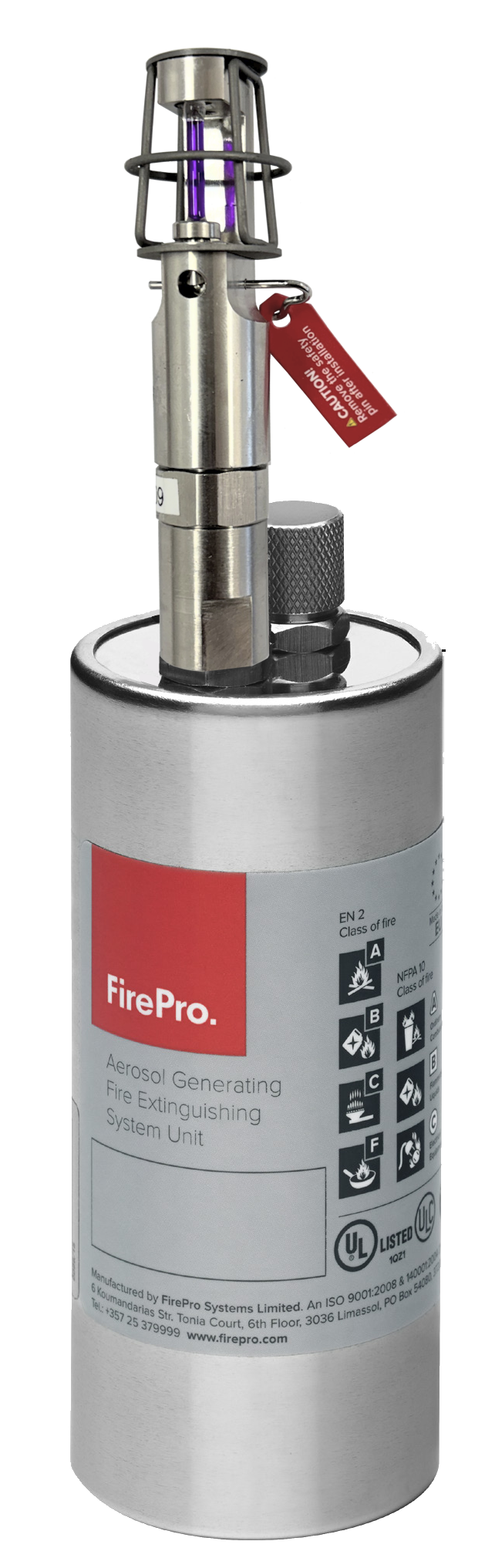

| FP-0040S | 40 | 610 | 140 x 50mm diam. | 1.1 | 310 x 220 x 110mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
 |
 |
|||
| FP-0080S | 80 | 870 | 190 x 50mm diam. | 1.4 | 310 x 220 x 110mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
 |
 |
|||

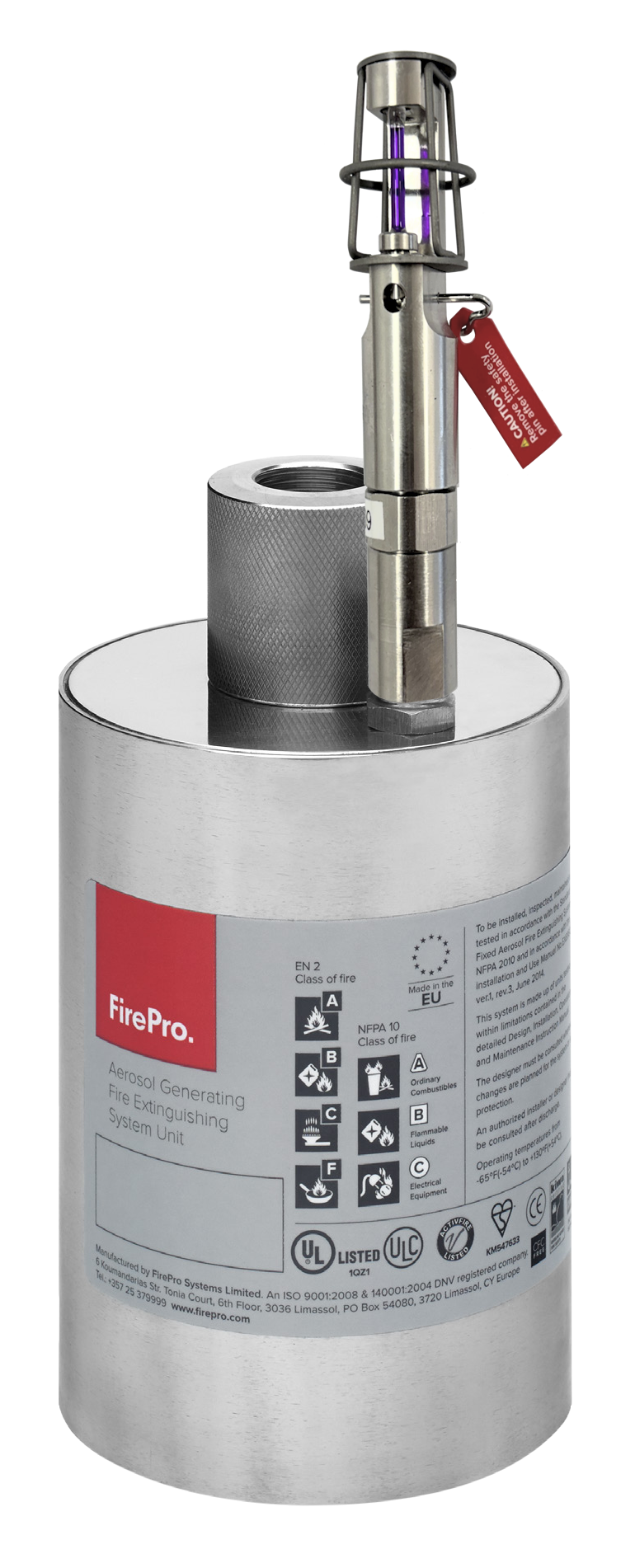

| FP-0100S | 100 | 1,370 | 160 x 88mm diam. | 1.8 | 310 x 220 x 110mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
 |
|
 |
 |
|

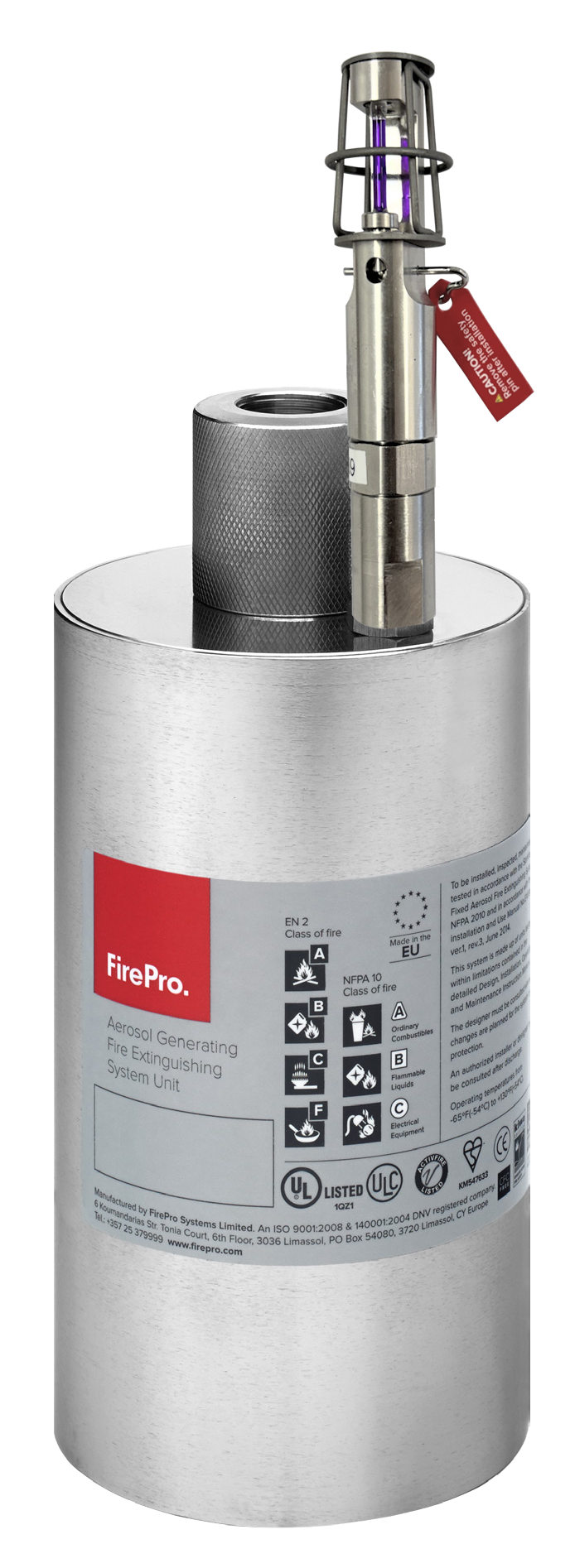

| FP-0200S | 200 | 1,840 | 190 x 88mm diam. | 2.5 | 310 x 220 x 110mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
|
|
 |
 |
|

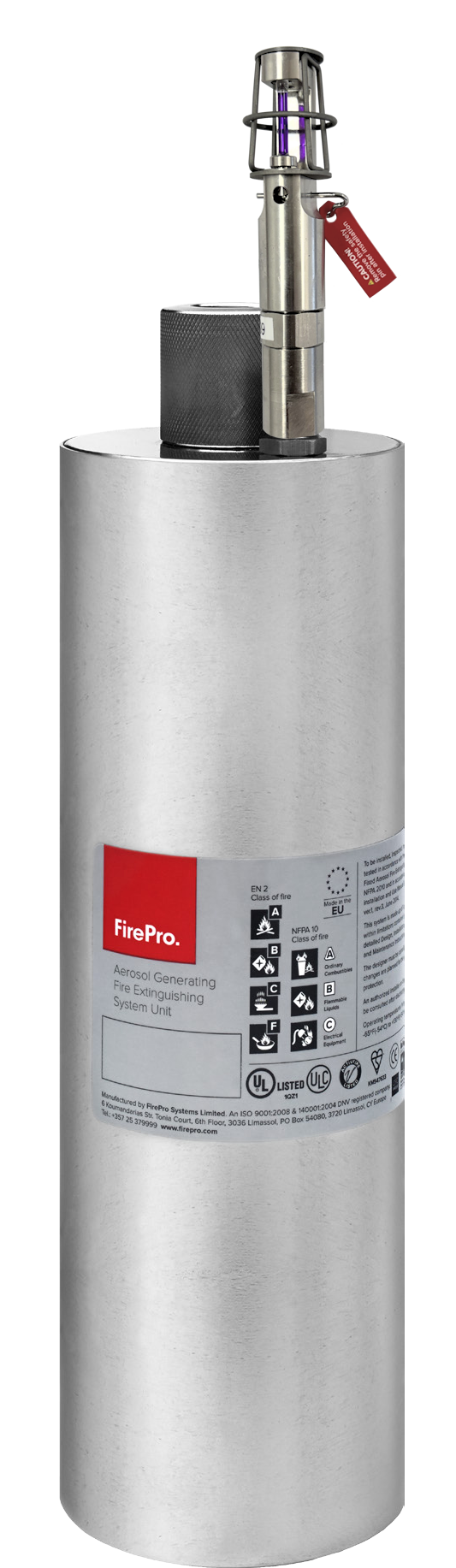

| FP-0500S | 500 | 3,340 | 290 x 88mm diam. | 3.8 | 310 x 220 x 110mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
|
|
 |
 |
|
| FP-1200S | 1,200 | 10,900 | 216 x 300 x 170mm | 15.0 | 430 x 310 x 270mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
 |
 |
|||
| FP-2000S | 2,000 | 15,500 | 300 x 300 x 185mm | 18.0 | 430 x 310 x 270mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
 |
||||
| FP-3000S | 3,000 | 16,300 | 300 x 300 x 185mm | 19.0 | 430 x 310 x 270mm | Electrical – or – Bulb Thermal Activator (BTA) | |
|
|
 |
||||
| FP-5700S | 5,700 | 26,400 | 300 x 300 x 290mm | 30.0 | 440 x 400 x 400mm | Electrical | |
|
|
 |
||||

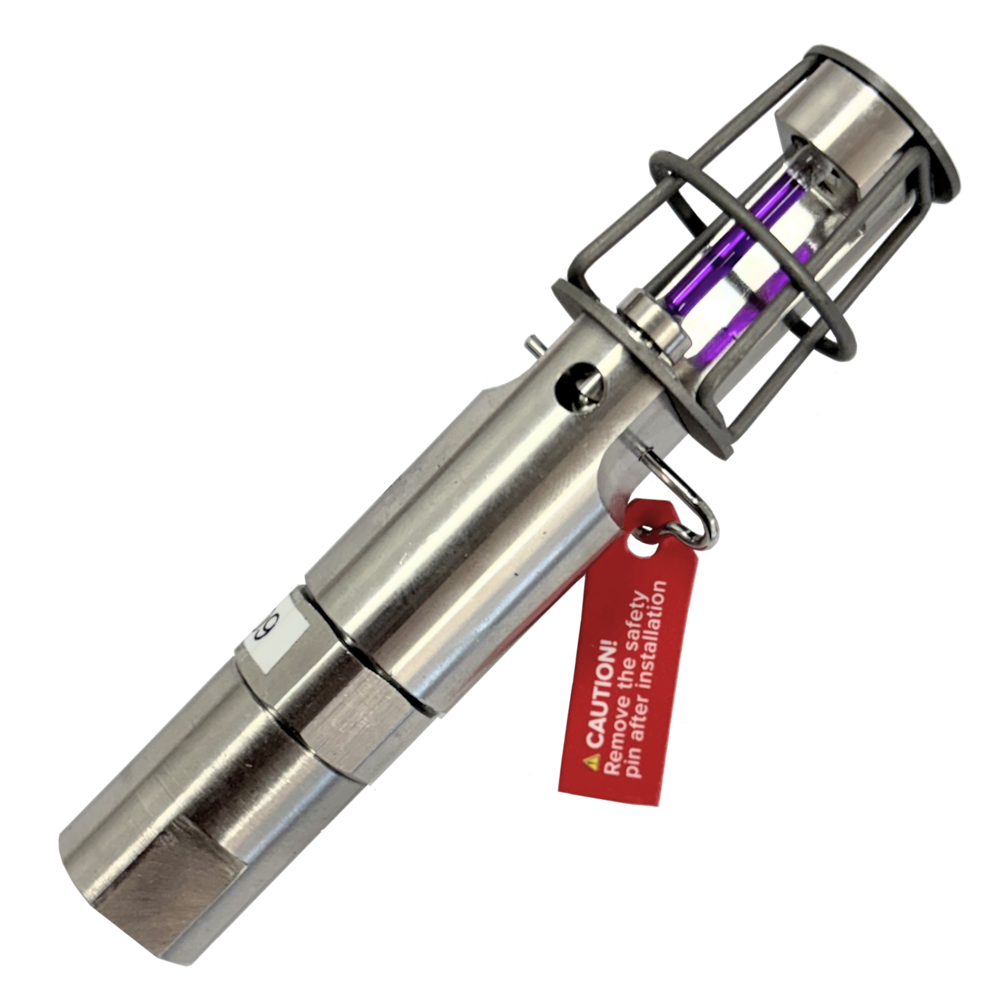

| FP-BTA BULB THERMAL ACTUATOR | ||||||||||||||
|
Self-contained, automatic and temperature controlled activation system. The FirePro BTA V3 performs the functions of fire detection and automatic activation of the fire extinguishing aerosol generator with the use of a bulb thermal sensor at a pre-selected temperature. The liquid in the bulb expands when the surrounding temperature increases. At the predetermined operating temperature the glass bulb ‘bursts’, causing the thermal mechanism to actuate the built-in firing pin, which in turn initiates the capsule, and ignites the solid compound of the Thermal Actuator. The Thermo Bulb is a fast response unit featuring improved strength and sensitivity characteristics. Response Time Index RTI 24m/s. The mechanism that remains in a static and not a dynamic load has undergone an aging test and has a product life of 15 years. |
|  |
  |
|||||||||||
| HEAVY DUTY BRACKETS – 316 Stainless Steel | ||||||||||||||
| FP-06100 Heavy Duty Bracket Suits : FP-1200, FP-2000, FP-3000, & FP-5700 Made from Heavy Duty 316 SSteel for Harsh Environments – Marine. |
 |
FP-06200 Heavy Duty Bracket Suits : FP-0100, FP-0200, and FP-0500 Made from Heavy Duty 316 SSteel for Harsh Environments – Marine.  FP-06300 Heavy Duty Bracket Suits : FP-0040 and FP-0080 Made from Heavy Duty 316 SSteel for Harsh Environments – Marine. |
 |
|||||||||||
| FirePro CONDENSED AEROSOL GENERATORS – FOR ATEX APPLICATIONS | ||||||||||||||
| FirePro Aerosol Generators for ATEX APPLICATIONS
FirePro ATEX Condensed Aerosol Generators are designed to operate in potentially explosive atmospheres. Local authorities have the responsibility for defining a Class, Zone, and Group classification for specific areas. The classification given to a particular zone, and its size and location, depends on the likelihood of an explosive atmosphere occurring and its persistence if it does. Areas classified into zones (0, 1, 2 for gas-vapor-mist and 20, 21, 22 for dust) must be protected from effective sources of ignition.
   |
 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
